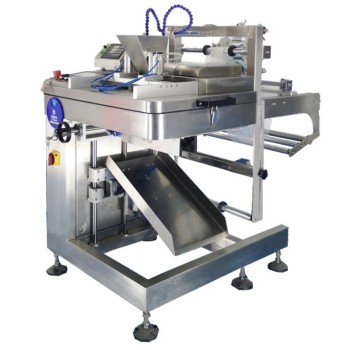

Tube film packaging machine
- group name
- Automatic feeding counting tube film packaging machine
- Min Order
- 1 piece
- brand name
- Syndar
- model
- SD-AX200
- Delivery clauses under the trade mode
- FOB, EXW, Express Delivery
- Acceptable payment methods
- T/T
- update time
- Fri, 26 Feb 2021 17:07:53 GMT
Paramtents
Auto packing machine air source requirements: 6kg/cm, 0.25m3/min
Packing range 10g~10kg
Film thickness 0.04-0.15mm
The voltage used by the automated packing machine AC 220V
Number of setting programs MAX 99
Packging & Delivery
-
Min Order1 piece
Briefing
Packing range: 10g~10kg
The length of the package can be set at will, which is convenient to match the bag of the product.
The length of the package can be set at will, which is convenient to match the bag of the product.
Detailed
Using Tube film packaging machine, you can:
●The automatic dal packing machine can directly use the low-cost tube film made of LDPE particles.
● The tubular film on the reel of the high speed packing machine is highly transparent, colorless and without printing. Optional hot printing machine, labeling machine.
●The length of bag packing machine can be set arbitrarily, which is convenient for making bags that better match the product.
●Our company has specially launched a short machine model for the packaging of the hardware industry, which can be directly connected to the screening machine packaging; the space is small and does not take up space.
Advantages of tube film packaging machine：
The tube film packaging machine is a new type of packet packing machine from SYNDAR. The high-speed series tube film packaging machine is a newly developed machine developed by SYNDAR that can automatically pack and seal bags using a cylindrical film. Compared with the traditional vertical packaging machine The biggest feature.
●PLC touch screen control system, heating time and bag size can be set.
● The number of semi auto packing machine products can be set, and the direction of the material receiving port can be selected.
●The upper and lower sides of the semi automatic packing machine are heat-sealed, with firm sealing, smooth bag shape and beautiful packaging effect.
●Optional automatic coding machine instead of manual labeling.
model | SD-AX200 | SD-AX300 | SD-AX400 | SD-AX500 | SD-AX600 | SD-AX700 | SD-AX800 |
Packaging speed | 1-15 bags/minute (the specific situation depends on the material) | ||||||
Bag size | L70-500mm | L70-500mm | L70-500mm | L70-500mm | L70-500mm | L70-500mm | L70-500mm |
W70-200mm | W70-300mm | W70-350mm | W70-450mm | W70-550mm | W70-650mm | W70-750mm | |
Gas source requirements | 6kg/cm，0.25m3/min | ||||||
Operation screen | 10.4 Color display touch screen | ||||||
Packing range | 10g~10kg | ||||||
Packaging Materials | OPP/CPP,OPP/PE,Mst/PE,PET/PE | ||||||
Film thickness | 0.04-0.15mm | ||||||
Set the number of programs | MAX 99 | ||||||
Sealing opening and closing method | cylinder | ||||||
Use voltage | AC 220V | ||||||
Total power | 0.3KW 0.35KW 0.4KW 0.35KW 0.5KW 0.55KW 0.6KW | ||||||
Full load current | 1.4A 1.6A 1.8A 2.0A 2.3A 2.5A 2.7A | ||||||
Body size | 680×1150×1170 | 780×1150×1170 | 880×1150×1170 | 980×1150×1170 | 1080×1150×1170 | 980×1150×1170 | 1280×1140×1170 |
Features of corner sealing machine:
The Chinese and English display screen control system is easy to operate, and the control system is automatically matched to improve efficiency.
The photoelectric detection system is stable and reliable to ensure the integrity of the brand of the packaging bag.
Intelligent temperature controller control, automatic measurement, bag making, filling, sealing, printing batch number.
Applications
The semi automatic pouch packing machine is suitable for tube film packaging operations of hardware consumables.
The small automatic pouch packing machine can be used in the packaging process of sauces.
The biscuit packing machine plays a very important role in the packaging process of puffed food.
Food product packing machine can be used in the packaging process of bulk candy.
