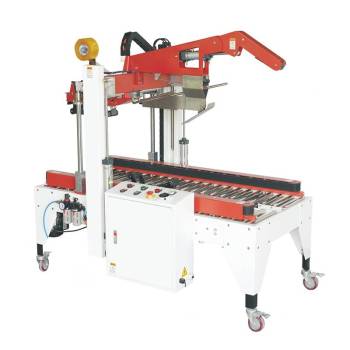

Automatic folding and sealing machine
- group name
- case sealer machine
- Min Order
- 1 piece
- brand name
- Syndar
- model
- SD-FC500DS
- Delivery clauses under the trade mode
- FOB, EXW, Express Delivery
- Acceptable payment methods
- T/T
- update time
- Thu, 26 Nov 2020 11:01:31 GMT
Paramtents
Minimum power consumption 0.2KW
Belt speed 20-28m/min
Applicable power supply 220/380V 50Hz
Use tape W48/60/75mm
Packging & Delivery
-
Min Order1 piece
Briefing
Use tape: W48/60/75mm
Automatically fold and automatically seal the box with tape.
Automatically fold and automatically seal the box with tape.
Detailed
Using Automatic folding and sealing machine, you can:
● Install and wrap tape and adjust air pressure.
●Check if there is water in the oil-water separator, drain the water; check if the amount of oil is sufficient, and add it if it is insufficient.
● Press the ON button of the switch to turn on the power to make the machine run.
● Before repairing or adjusting, turn off the power source of the machine.
Advantages of automatic folding and sealing machine
The automatic folding and sealing machine is a new type of sealing adhesive machine from SYNDAR. The principle of the automatic folding and sealing machine is to automatically fold the four upper lids of the carton and automatically seal the box with tape.
●Automatic carton packing machines adopt the form of left and right drive, pneumatic folding cover mechanism.
● High-strength structural design makes this model reliable,
● It can adapt to the continuous heavy sealing work of the production line.
|
Model
|
SD-FC500DS | SD-FI500 | SD-FC500B | SD-FC500A | SD-FC500 | SD-500C | SD-FC500TB |
SD-500H
|
Minimum carton size | L150*W120*H100mm | L280*W200*H150mm | L200*W180*H150mm | L200*W200*H130mm | L200*W120*H120mm | L250*W150*H120mm | L200*W150*H120mm | L200*W200*H150mm |
Maximum carton size | L400*W300*H300mm | L600*W500*H500m | L500*W400*H400mm | L600*W500*H500mm | L600*W500*H500mm | L600*W500*H500mm | L60*W500*H500mm | L400*W400*H400mm |
Mechanical Dimensions | L1402*W830*H1300mm | L1700*W920*H1450mm | L2100*W930*H1510mm | L1780*W930*H1510mm | L1700*W930*H1510mm | L2010*W940*H1900mm | L2400*W1050*H1710mm | L1700*W930*H1510mm |
Belt speed | 20m/min | 20m/min | 38m/min (35~45 boxes/min) | 28m/min (20~30 boxes/min) | 20m/min (10~15 boxes/min) | 20m/min | 20m/min (10~15 boxes/min) | 20m/min (10~15 boxes/min) |
Power consumption | 0.2KW | 0.4KW | 0.6KW | 0.4KW | 0.4KW | 0.4KW | 0.4KW | 0.4KW(Without glue machine) |
Use air source | 6kgf/cm² 40nl/min | 6kgf/cm² 100nl/min | 6kgf/cm² 40nl/min | 6kgf/cm² 40nl/min | 6kgf/cm² 40nl/min | 6kgf/cm² 40nl/min | 6kgf/cm² 40nl/min | 6kgf/cm² 40nl/min |
Applicable power supply | 220/380V 50Hz | |||||||
Applicable tape | W48/60/75mm | |||||||
Machine weight | 180KG | 280KG | 280KG | 200KG | 180KG | 180KG | 380KG | 180KG(Without glue machine) |
Table height | 600mm | 600mm | 600mm | 600mm | 600mm | 450/750mm | 700mm | 600mm |
Machine characteristics | Small box | Fully automatic | high speed | Medium speed | Low speed | Low speed | Labeling | Hot melt glue |
Standard specifications (non-standard customization is acceptable) | ||||||||
Features of corner sealing machine:
Automatically adjust the width and height when the carton size changes, and fully automatic machine positioning.
The top automatically folds and delivers in time.
The carton sealing machine is of high quality, and the automatic carton sealing machine is flat, without wrinkles and bubbles.
Applications
The automatic carton box packing machine can be used for box sealing in the hardware packaging process.
The automated box packing machine can be used for packing and sealing the assembly line of a textile factory.
The cardboard box packing machine is widely used in the sealing work of the production line of the beverage industry.
It can be applied to the sealing and packaging of cosmetics assembly line.
