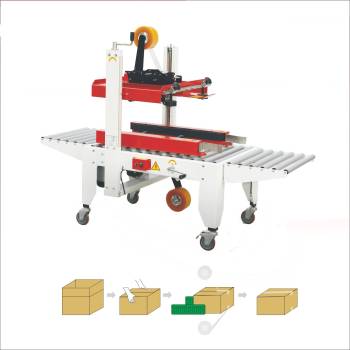

Manual folding and sealing machine

Manual folding and sealing machine
Manual folding and sealing machineManual folding and sealing machineManual folding and sealing machineManual folding and sealing machineManual folding and sealing machine
group name
case sealer machine
Min Order
1 piece
brand name
Syndar
model
SD-FA500 ,SD-FA500P ,SD-FA4050, SD-FP500AJ,
Delivery clauses under the trade mode
FOB, EXW, Express Delivery
Acceptable payment methods
T/T
update time
Thu, 26 Nov 2020 11:00:52 GMT

Paramtents

  • Minimum power consumption 0.2KW

  • Belt speed 20-28m/min

  • Applicable power supply 220/380V 50Hz

  • Use tape W48/60/75mm

Packging & Delivery

  • Min Order1 piece

Briefing

Belt speed: 20-28m/min
Cooperate with manual to complete the precise sealing work

Detailed

Using manual folding and sealing machine, you can:
 Install the tape on the tape holder of the automatic box sealer machine and adjust the adjustment tab on the tape device.
Adjust the height of the workbench and tighten the nuts according to the needs of the operation.
 Press the power switch, start the machine, place the packing box on the conveyor platform, and manually send the carton to the conveyor belt for sealing.


Advantages of manual folding and sealing machine
The manual folding and sealing machine is a new type of automatic case sealing machine from SYNDAR. It can be used to complete the precise sealing work with manual work. It adopts dual-drive sealing, which can automatically complete the upper and lower middle sealing actions at one time, and the sealing speed is fast.

Seal with instant tape, economical, fast and easy to adjust.
 Machine performance is stable and reliable, provides sealing efficiency, and ensures strong applicability
Adopt the function of manually adjusting the width and height to ensure that the operator can operate our machine simply, quickly and conveniently.
Model
SD-FA500
SD-FA500P
SD-FA4050
SD-FP500AJ
SD-FB500
SD-FS500(TOW-SIDED)
SD-FE500A
SD-FE5000B
category
Semi-automatic sealing
Automatic sealing
Minimum carton size
L150*W120*H130mm
L150*W180*H150mm
L150*W120*H200mm
L250*W120*H130mm
L150*W180*H130mm
L150*W225*H100mm
L150*W120*H130mm
L200*W200*H130mm
Maximum carton size
L∞*W500*H500mm
L∞*W500*H500m
L∞*W400*H500mm
L∞*W500*H500mm
L∞*W500*H500mm
L∞*W400*H400mm
L∞*W500*H500mm
L∞*W500*H500mm
Mechanical Dimensions
L1000*W880*H1330mm
L1000*W880*H1330mm
L1000*W880*H1330mm
L1300*W880*H1330mm
L1000*W900*H1330mm
L845*W1316*H1340mm
L1160*W975*H1330mm
L1570*W960*H1540mm
Belt speed
20m/min
20m/min
20m/min
20m/min
20m/min
20m/min
20m/min
28m/min
Power consumption
0.2KW
0.3KW
0.4KW
0.2KW
0.2KW
0.2KW
0.2KW
0.2KW
Applicable power supply
220/380V 50Hz
Applicable tape
W48/60/75mm
Machine weight
120KG
130KG
150KG
130KG
126KG
145KG
180KG
180KG
Table height
600mm
600mm
600mm
450/750mm
600mm
600mm
600mm
600mm
Machine characteristics
Narrow and light
Wide, medium
Narrow, high
Can be matched with different brands
Tall and heavy
Short and wide
Fully automatic
High-speed type
Standard specifications (non-standard customization is acceptable)
Features of corner sealing machine:
It can be wired or operated as a stand-alone machine, and the cover can be folded manually, and the horizontal sealing can be completed at one time.
The tape applicator has a precise and firm structure, a smooth operation and a long service life.
The transmission mode is driven by the lower two belts, and the width and height are manually adjusted when changing specifications.
Applications
It can be used in the express delivery industry to seal the box after checking the contents of the package.
The automatic sealing machine coimbatore can be used for the final sealing of home appliances and electrical appliances.
The carton box edge sealing machine is widely used in sealing operations in the food industry.
Packaging sleeve sealing machine packaging sleeve sealing machine can be applied to the packaging of daily necessities assembly line.
