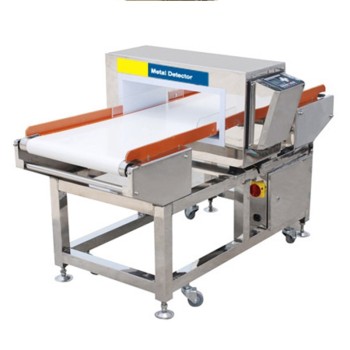

Metal Detection Conveyor System
- group name
- Metal detector machine
- Min Order
- 1 piece
- brand name
- Syndar
- model
- SD-500QS /SD-500QN
- Delivery clauses under the trade mode
- FOB, EXW, Express Delivery
- Acceptable payment methods
- T/T
- update time
- Fri, 26 Feb 2021 16:44:22 GMT
Paramtents
Metal detector machine detection method electromagnetic induction
Detecting surface width 500mm
Metal Detection alarm mode buzzer, luminous tube
Industrial metal detection systems conveying speed 32m/min (50Hz), 40m/min (60Hz)
Power supply AC220V/380V 50-60Hz
Packging & Delivery
-
Min Order1 piece
Briefing
Pass width：200-760
A variety of specifications and a variety of sensitivity options, better performance, more stable detector.
A variety of specifications and a variety of sensitivity options, better performance, more stable detector.
Detailed
Using Metal Detection Conveyor System, You Can：
●Dimensions: 1620mm (L) * 900mm (W) * 1150mm (H)
●Weight: about 200Kg
●Power is about 140w
●The food metal detector has an extremely easy function and can store the detection parameters of more than 50 products.
Advantages of Metal Detection Conveyor System
Metal detection conveyor system is a new type of safeline metal detector from SYNDAR. Metal detection systems have more stable and reliable phase adjustment technology with better performance, which can adjust products and effectively suppress product effects.
●The food grade metal detector adopts dual signal detection circuit combination technology, which has high sensitivity and high anti-interference ability.
●The metal detector for food manufacturing can be used in conjunction with the assembly line to implement automatic inspection of the assembly line.
●Signal processing is completed by digital circuit, which is simple to adjust, stable and reliable.
●SYNDAR has professional food processing metal detectors for sale. Metal detector for food industry price has a great advantage in the market
|
Model
|
SD-500QS /SD-500QN
|
||||||||||
|
Channel size
|
2010
|
3010 | 4010 | 4015 | 4020 | 4025 | 5015 |
6015
|
6020 | 7015 | |
|
Length of the whole machine
|
1200
|
1200 | 1200 | 1200 | 1200 | 1200 | 1600 |
1600
|
1600 | 1800 | |
|
Overall width
|
530
|
6300 | 830 | 830 | 830 | 830 | 930 |
1030
|
1030 | 1330 | |
Conveyor speed | 200 | 3004 | 400 | 400 | 400 | 400 | 500 | 500 | 600 | 700 | |
Pass width | 200 | 300 | 460 | 460 | 460 | 460 | 560 | 560 | 660 | 760 | |
Pass height | 100 | 80 | 100 | 150 | 200 | 250 | 150 | 150 | 200 | 150 | |
Sensitivity | QN | Fe：0.6 | Fe：0.6 | Fe：0.6 | Fe：1.0 | Fe：1.5 | Fe：2.0 | Fe：1.2 | Fe：1.5 | Fe：2.0 | Fe：1.2 |
SUS:1.2 | SUS:1.2 | SUS:1.5 | SUS:2.0 | SUS:2.5 | SUS:2.0 | SUS:2.0 | SUS:1.8 | SUS:2.5 | SUS:2.0 | ||
QN | Fe：0.8 | Fe：1.0 | Fe：1.0 | Fe：1.5 | Fe：1.5 | Fe：2.0 | Fe：1.5 | Fe：1.5 | Fe：2.0 | Fe：1.5 | |
SUS:1.5 | SUS:1.5 | SUS:1.5 | SUS:2.0 | SUS:2.8 | SUS:3.5 | SUS:2.0 | SUS:2.0 | SUS:2.5 | SUS:2.0 | ||
Features of Glass X-ray inspection:
The metal detectors food processing industry combines DSP and single-chip microcomputer to perform data sampling and data processing on the detection signal, which improves the detection effect.
metal detection systems food specializes in the detection of ferrous metals, non-ferrous metals and alloy impurities.
The garment metal detector machine dual linear LED indicator lights indicate the real-time sensitivity of iron and non-iron respectively.
Applications
The metal detector machine for garment industry can detect textile items, has a self-learning function, has a memory function, and can store the detection parameters of 50 products
Metal detector machine images detects various metal fragments in chemical raw materials, rubber products and paper products.
Metal detectors for food packaging provide a universal and space-saving solution for detecting various foods in the production process and at the end of the production line, such as baked products.
The metal detector for frozen food industry can detect metal contaminants of smaller size in wet, frozen and metal film packaged food. Such as: frozen meat.
