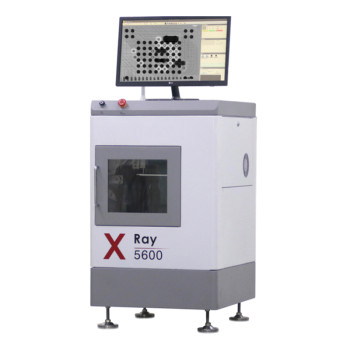

industrial x ray inspection SD-X-5600

industrial x ray inspection SD-X-5600
industrial x ray inspection SD-X-5600industrial x ray inspection SD-X-5600industrial x ray inspection SD-X-5600industrial x ray inspection SD-X-5600industrial x ray inspection SD-X-5600
group name
x ray inspection equipment
Min Order
1 piece
brand name
Syndar
model
SD-X-5600
Delivery clauses under the trade mode
FOB, EXW, Express Delivery
Acceptable payment methods
T/T
update time
Thu, 26 Nov 2020 11:38:03 GMT

Paramtents

  • Industrial x ray machines maximum tube voltage 80KV

  • Maximum tube current 0.5mA

  • industrial x ray inspection focal spot size 10um

  • Speed 35fps

  • x ray food inspection systems resolution 1124*100

Packging & Delivery

  • Min Order1 piece

Briefing

Total power:1KW
Industrial X-ray inspection, specially designed for detecting foreign bodies and metals in various industries

Detailed

Using industrial x ray inspection, you can:
industrial x ray inspection equipment stage speed: "slow", "normal speed", "fast" can be controlled by the space bar.
The x ray inspection system stage can be positioned in X, Y, ZF directions; X-ray tube and X-ray detector orientation.
in line x ray inspection super large navigation window, easy to locate and identify defective products.



Industrial x ray inspection advantages:
industrial x ray inspection is a new type of industrial x ray inspection equipment from SYNDAR. Industrial x ray inspection systems can be applied to different industrial product groups to detect missing or damaged industrial components and identify potentially hazardous substances in the industry.

Users can control the speed and angle of the stage through programming.
Industrial X-ray inspection systems can distinguish between dark areas composed of lead and light areas without lead.
Adopt the structure of high-resolution enhanced screen and sealed micro-focus X-ray tube, through X-ray non-destructive fluoroscopy inspection, clear pictures can be observed in real time.
SYNDAR is a professional manufacturer of x ray inspection machine companies, focusing on x ray machine food manufacturing.
Item
Content
Device model
SD-X-5600
NJ launch tube
Light pipe type
Closed X-ray tube
Maximum tube voltage
80KV
Maximum tube current
0.5mA
Focal spot size
10um
Magnification
Geometric magnification: 15× system magnification: 1000X

Detector
Speed
35fps
Resolution
1124*1000
slope
60° tilt of detector
Cabinet specifications
Stage size
250mm*250mm
Dimensions
Length:600mm, width 600mm, height800mm
Equipment net weight
260KG
Input voltage
AC110-220V (±10%) (international power supply method)
X-ray leakage
<lusv/h
operating system
Windows7
Total power
1KW
Features of Glass X-ray inspection:
x ray inspection food industry anti-collision system can meet the maximum tilt and observation of objects.
The portable x ray inspection system automatically analyzes the BGA diameter, void ratio, area and roundness.
The powerful software measurement function of x ray for food inspection greatly improves the inspection efficiency.
Applications:
Regardless of the size, shape or position of the contaminants in the ceramics, the contaminants can be easily detected.
X-ray inspection technology has stable performance. Can check water pipes, bulbs, etc.
Can detect electronic objects, such as BGA\PCB\LED, etc.
The X-ray foreign body inspection machine can also perform product missing inspection, damaged packaging inspection, and weight inspection. For example: toys.
