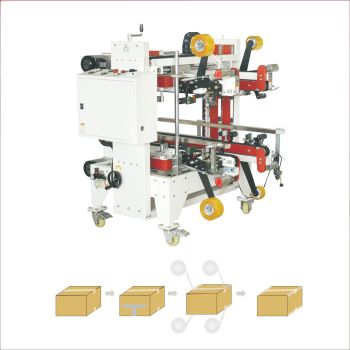

Box sealing machine with four corners

Box sealing machine with four corners
Box sealing machine with four cornersBox sealing machine with four cornersBox sealing machine with four cornersBox sealing machine with four cornersBox sealing machine with four corners
group name
case sealer machine
Min Order
1 piece
brand name
Syndar
model
SD-FG500I,SD-FG500L,SD-FG500L,SD-FH500L
Delivery clauses under the trade mode
FOB, EXW, Express Delivery
Acceptable payment methods
T/T
update time
Thu, 26 Nov 2020 12:21:49 GMT

Paramtents

  • Minimum power consumption 0.4KW

  • Belt speed 6-10 cases/min

  • Applicable power supply 220/380V 50Hz

  • Use tape W48/60/75mm

Packging & Delivery

  • Min Order1 piece

Briefing

Minimum power consumption: 0.4KW
Four-corner H-shaped sealing can be completed at one time

Detailed

Using the corner sealing machine, you can:
After the product is packed in the carton, it is sent to the carton sealing machine via the conveyor chain and delivered to the carton conveying mechanism. The carton belt is clamped on both sides of the carton and moves forward
When the carton enters the sealing machine roller, there is a detection signal to notify the tongue punching cylinder to move, and the tongue punching frame will bend it.
Press the left and right long tongues of the carton synchronously to make the box, tongue and glue together to complete the sealing and shaping action.


Advantages of corner sealing machine
The corner sealing machine is a new case sealer machine of SYNDAR. The corner sealing machine uses instant adhesive tape to seal the eight corners and four sides of the carton parallel to the forward direction. It is economical and fast, easy to operate, and simple to maintain.

This set of series is a combination of single machine, H-shaped four-corner side sealing series, online matching, combined into operation.
Transmission design method, adopting the upper and lower transmission to send the box and post with the sealing and packaging operation;
The seal and shrink machine guarantees more beautiful appearance than manual tape, fast speed and high efficiency.
Model
SD-FG500I
SD-FG500L
SD-FG400LDS
SD-FH500L
category
Semi-automatic sealing
Automatic sealing
Minimum carton size
L340*W200*H180mm
L340*W200*H180mm
L190*W120*H100mm
L340*W200*H180mm
Maximum carton size
L700*W150*H500mm
L700*W500*H500m
L400*W400*H300mm
L600*W500*H500mm
Mechanical Dimensions
L1265*W1150*H1500mm
L1910*W1150*H1500mm
L2540*W1130*H1350mm
L2100*W1300*H1500mm
Belt speed
6-10 boxes/min
6-10 boxes/min
6-10 boxes/min
4-6 boxes/min
Power consumption
0.4KW
0.6KW
0.6KW
0.6KW
Applicable air source
6kgf/cm² 90nl/min
6kgf/cm² 100nl/min
6kgf/cm² 120nl/min
6kgf/cm² 150nl/min
Applicable power supply
220/380V 50Hz
Applicable tape
W48/60/75mm
W48/60/75mm
W48
W48/60/75mm
Machine weight
350KG
440KG
400KG
480KG
Table height
620mm
620mm
620mm
620mm
Machine characteristics
Straight
L type
E-commerce
L type
Manual adjustment is required when changing specifications
Manual adjustment is required when changing specifications
Manual adjustment is required when changing specifications
Automatic adjustment when changing specifications
Standard specifications (non-standard customization is acceptable)
Features of corner sealing machine:
The machine includes a 90° steering push box mechanism with special handling small boxes.
The front end can be equipped with a horizontal carton sealing machine, and the four-corner H-shaped carton can be sealed at one time.
The online process adopts L-style forward push and turn.
Applications
The automatic case sealer machine is suitable for the packing process of dairy products.
Can be used for sealing of electrical packaging.
The bopp sealing machine is suitable for the packaging process of parts and accessories.
The itw signode carton sealing machine can be used for packaging decorations.
